RS232 GPS receiver, supports receiving GPS+GLONASS+GALILEO at the same timeTOPGNSS RS232 serial port GNSS GPS mouse receiver is a GNSS GPS receiving device designed with UBLOX 8030 GNSS chip. Through
RS232 GPS receiver, supports receiving GPS+GLONASS+GALILEO at the same time
TOPGNSS RS232 serial port GNSS GPS mouse receiver is a GNSS GPS receiving device designed with UBLOX 8030 GNSS chip. Through the standard NMEA 0183 protocol output, a complete serial data message including position, speed and time information can be received through the serial RS232 interface.
GPS receiver module, it is a wired GNSS GPS receiver module with RS232 serial interface. It adopts independent design, fixed with N35 magnet and 3M glue, waterproof grade IP meets IPX67, easy to install and use, and easy to integrate in o the car In the camera system, such as car navigation, outdoor monitoring, base station timing, DVR (digital video recording), driving recorder, rearview mirror, closed-circuit television, etc. It is very suitable for fleet management and control systems, such as taxi dispatch, bus wireless routers with GPS, truck alarms, automatic bus station announcement systems, etc.

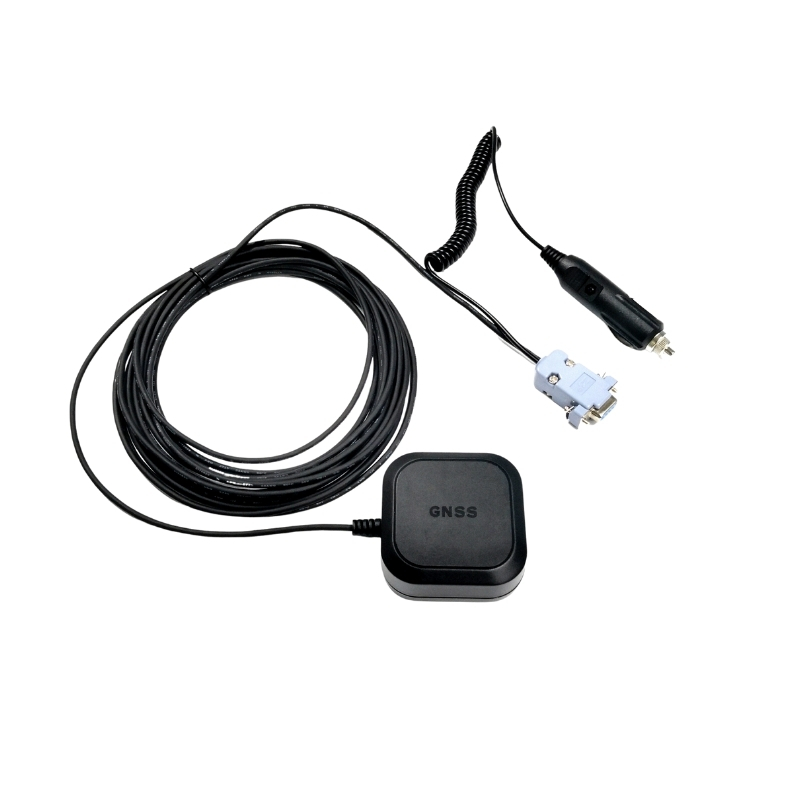

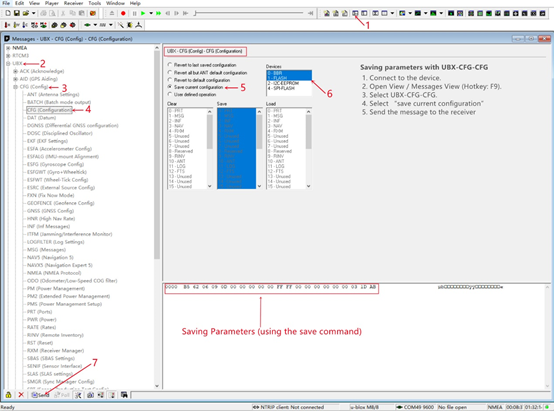

| TOPGNSS GNSS Receiver /GPS MOUSE GN608GR | Size: 68*68*28mm | ||||
| Receiving Frequency band | GNSS L1, (GPS+GLONASS+GALILEO) | Receiving channel | 72CH | ||
| Direction | <0.5 Degrees | Rate | <0.1m/s | ||
| Timing accuracy | 50 ns | Reference coordinate system | WGS-84 | ||
| Maximum altitude | 50000M | Maximum speed | 500 m/s | ||
| Acceleration | <=4g | Tracking sensitivity | -167dBm | ||
| Capture the sensitivity | -167dBm | Standard clock pulse | 0.25Hz-1KHz | ||
| Location update rate | 1Hz-15Hz(default 1Hz，Only GPS mode supports 20HZ) | The start up time | 32(typical) | ||
Port interface(default) | RS232 port interface(default) RS232 port interface(default) Customizable UART/TTL, USB, RS485, RS422 | Warm start time | 28(typical) | ||
Hot start | 1(typical) | AGPS | 3s | ||
Output | NMEA 0183 V4.1(GNGGA,GGSA,GNGSV,GNRMC,GNVTG,GNGLL)protocol,UBX | ||||
Electrical interface | Wide voltage range: the main power supply 3.3-5V, Owned RTC Power | ||||
Data rate | 9600bps(default) (optional: 1200,2400,4800,19200,38400,57600,115200,230400,460800,921600) | ||||
Cable length | 5.0 meters（Support 2m, 3m, 10m, 15m, 20m customization） | C/A Code,1023MHz code stream | |||
Connector | DB9 female (support customization) | ||||
Positioning performance | <2.0M(Autonomous)(50%) <1.5M(SBAS) | ||||
Fixing method | N35 magnet | Water release rating | IP67 | ||
Normal working conditions
| Parameters | Min | Standard | Max |
| The power supply voltage(V) | 7.0 | 12.0 | 24.0 |
| Working temperature(ºC) | -40 | -- | 85 |
| Working current(mA) | 35 | 45 | 55 |
Connector DB 9 Pin Out:
DB9 female Pin Description:
Interface | PIN | PIN Name | I/0 | Description |
DB9 Female | 2 | TX | I | RS-232 Serial Data Output |
3 | RX | O | RS-232 Serial Data INput | |
5 | GND | I | Ground | |
9 | VCC | G | DC 12V-24V supply input,Typical:12.0V |
External power supply:=+12-24 vDC Pin=2+GPS Tx Pin 3=GPS Rx Pin 5=GND
Output NMEA0183 protocol sample:
XXGGA,XXRMC,XXGSV,XXGSA,XXVTG,XXGLL | |
Configured GNSS | Talker ID |
GPS，SBAS,QZSS | GP |
GLONASS | GB |
BeiDou | GB |
Galileo | GA |
Any combination of GNSS | GN |
06:26:28 $GNRMC,062628.00,A,2235.51231,N,11353.49967,E,0.005,,090721,,,D,V*05 06:26:28 $GNVTG,,T,,M,0.005,N,0.010,K,D*3C 06:26:28 $GNGGA,062628.00,2235.51231,N,11353.49967,E,2,12,0.73,26.6,M,-2.9,M,1.0,3344*41 06:26:28 $GNGSA,A,3,02,20,12,17,09,19,05,25,13,50,,,1.83,0.73,1.68,1*01 06:26:28 $GNGSA,A,3,69,83,68,,,,,,,,,,1.83,0.73,1.68,2*09 06:26:28 $GNGSA,A,3,09,12,04,36,25,11,24,,,,,,1.83,0.73,1.68,3*08 06:26:28 $GNGSA,A,3,08,11,07,14,13,34,10,,,,,,1.83,0.73,1.68,4*0B 06:26:28 $GPGSV,4,1,14,02,47,347,43,05,37,245,42,06,42,037,41,09,22,053,37,1*6C 06:26:28 $GPGSV,4,2,14,11,48,352,45,12,34,280,40,13,14,183,31,17,27,132,39,1*62 06:26:28 $GPGSV,4,3,14,19,49,121,42,20,58,277,43,25,12,307,36,28,,,35,1*54 06:26:28 $GPGSV,4,4,14,41,46,237,43,50,60,149,41,1*6D 06:26:28 $GPGSV,2,1,07,05,37,245,42,06,42,037,44,09,22,053,40,11,48,352,46,6*66 06:26:28 $GPGSV,2,2,07,12,34,280,40,17,27,132,38,25,12,307,37,6*52 06:26:28 $GPGSV,1,1,01,40,20,257,,0*52 06:26:28 $GLGSV,2,1,07,68,44,033,46,69,76,166,47,73,07,231,33,74,08,276,32,1*76 06:26:28 $GLGSV,2,2,07,82,16,104,33,83,43,060,32,84,29,343,35,1*49 06:26:28 $GLGSV,2,1,06,68,44,033,39,69,76,166,40,73,07,231,31,82,16,104,31,3*7B 06:26:28 $GLGSV,2,2,06,83,43,060,35,84,29,343,38,3*78 06:26:28 $GLGSV,1,1,01,70,17,202,,0*49 06:26:28 $GAGSV,3,1,09,04,54,083,49,09,45,175,47,11,50,008,46,12,28,076,41,2*74 06:26:28 $GAGSV,3,2,09,14,43,320,52,19,09,040,33,24,18,196,41,25,28,252,44,2*73 06:26:28 $GAGSV,3,3,09,36,22,312,41,2*4F 06:26:28 $GAGSV,3,1,09,04,54,083,40,09,45,175,41,11,50,008,41,12,28,076,31,7*7E 06:26:28 $GAGSV,3,2,09,14,43,320,46,19,09,040,26,24,18,196,36,25,28,252,36,7*72 06:26:28 $GAGSV,3,3,09,36,22,312,38,7*44 06:26:28 $GAGSV,1,1,02,02,12,302,,05,03,203,,0*71 06:26:28 $GBGSV,2,1,08,07,41,190,41,08,48,354,44,10,51,221,43,11,47,092,43,1*78 06:26:28 $GBGSV,2,2,08,13,46,322,45,14,71,044,46,16,25,166,39,34,28,112,40,1*7D 06:26:28 $GBGSV,2,1,08,06,28,161,43,07,41,190,44,08,48,354,47,10,51,221,45,3*78 06:26:28 $GBGSV,2,2,08,11,47,092,48,13,46,322,47,14,71,044,48,16,25,166,42,3*70 06:26:28 $GBGSV,3,1,09,01,47,123,,03,65,189,,04,33,110,,05,24,255,,0*7B 06:26:28 $GBGSV,3,2,09,05,24,255,,09,12,183,,12,04,121,,23,06,229,,0*75 06:26:28 $GBGSV,3,3,09,23,06,229,,0*40 06:26:28 $GNGLL,2235.51231,N,11353.49967,E,062628.00,A,D*78 06:26:29 $GNRMC,062629.00,A,2235.51231,N,11353.49967,E,0.008,,090721,,,D,V*09 06:26:29 $GNVTG,,T,,M,0.008,N,0.015,K,D*34 06:26:29 $GNGGA,062629.00,2235.51231,N,11353.49967,E,4,12,0.73,26.6,M,-2.9,M,1.0,3344*40
| |
(1) Possible values for status: V = Data invalid, A = Data valid
(2) Possible values for quality: 0 = No fix, 1 = Autonomous GNSS fix, 2 = Differential GNSS fix, 4 =
RTK fixed, 5 = RTK float, 6 = Estimated/Dead reckoning fix
(3) Possible values for navMode: 1 = No fix, 2 = 2D fix, 3 = 3D fix
(4) Possible values for posMode: N = No fix, E = Estimated/Dead reckoning fix, A = Autonomous
GNSS fix, D = Differential GNSS fix, F = RTK float, R = RTK fixed
Flags in NMEA 4.10 and above
(1) Possible values for status: V = Data invalid, A = Data valid
(2) Possible values for quality: 0 = No fix, 1 = Autonomous GNSS fix, 2 = Differential GNSS fix, 4 =
RTK fixed, 5 = RTK float, 6 = Estimated/Dead reckoning fix
(3) Possible values for posMode: N = No fix, E = Estimated/Dead reckoning fix, A = Autonomous
GNSS fix, D = Differential GNSS fix, F = RTK float, R = RTK fixed
TOPGNSS Support customized GNSS receiver GNSS chip specifications: | ||||
GNSS chips | Brand | Chip Model | Remarks | |
U-blox | UBX-M8030-KT UBX-G7020-KT UBX-G6010-ST | GNSS L1 | ||
MTK | MT3335 MT3333 MT3331 MT3337 | Support custom NMEA data encryption | ||
ALLYSTAR | HD8040 HD8020 | GNSS:L1+L5 | ||
SIRF | SIRF4 SIRF5 | GNSS:L1 | ||
TOPGNSS GNSS Receiver Accept custom type: GNSS mode, special data, structure, size, logo, cable length, connector specification, installation and fixing method. | ||||
If you have other special requirements, please feel free to contact us. info@topgnss.com | ||||
Primary CompetitiveAdvantages | • Small Orders Accepted （Support sample purchase and small batch customization） |
• Quality Approvals （CE,FCC,ROHS) | |
• Service（rapid mass customization OEM / ODM） | |
• Reputation (TOPGNSS) | |
Shipping Information | Lead Time:3-30days
FOB Port:Shen Zhen China |
Payment Details | Payment Method: L/C or T/T in Advance |
Main Export MPayment Details | • Asia |
• Australasia | |
• Central/South America | |
• Eastern Europe | |
• North America | |
• Western Europe | |
• Mid East/Africa | |
Transportation logistics | FedEX UPS DHL |
Tips:Support guests to send goods using their signed logistics express | |
