TOP103

高精度亚米级GPS定位模块接收器TOP103

TOPGNSS RS232亚米级高精度GPS模块接收器,GNSS工作模式,支持同时接收GPS+GLONASS+GALILEO 卫星系统, RS232串口通讯电平,满足车辆,船载工业应用要求,安装方便,使用灵活,便于集成与维护。

  • 型号: TOP103

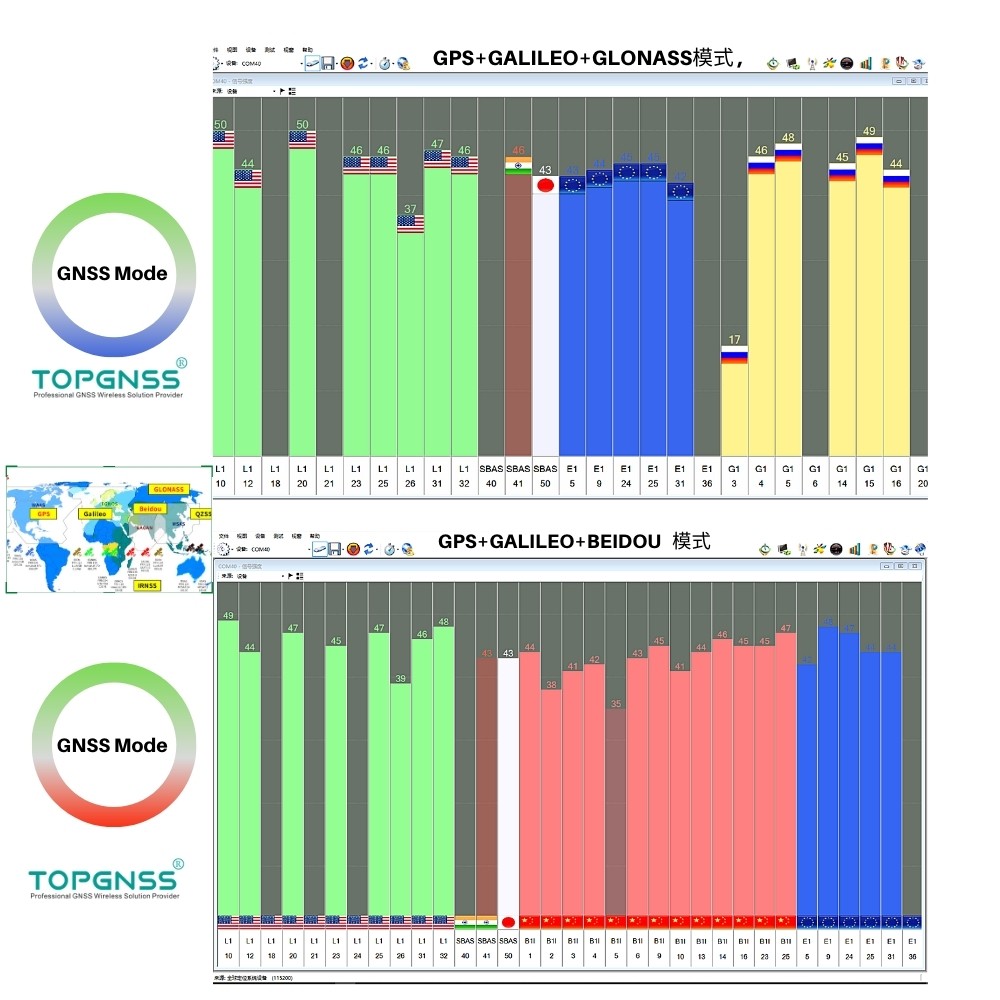

  • GNSS模式:: GPS+GLONASS+GALILEO
  • 工作电平:: RS232
  • 波特率:: 9600 (default) can be set
  • 接收通道::
  • 线缆长度:: 5.0meter,Support customization
  • 工作电压(V):: 5.0V, 5.0V can be customized
  • 工作电流:: 55mA
  • 连接器类型:: DB9,Support customization
  • 尺寸(mm):: 85*75mm
  • 重量(克):: 125g
  • 防水等级:: IP67
  • 品牌: TOPGNSS


TOPGNSS RS232串口 亚米级高精度GNSS GPS接收器是一款采用UBLOX 8030 GNSS芯片设计的GNSS GPS接收设备。通过标准的NMEA 0183协议输出,可以通过串行RS232接口接收包含位置、速度和时间信息的完整串行数据报文。

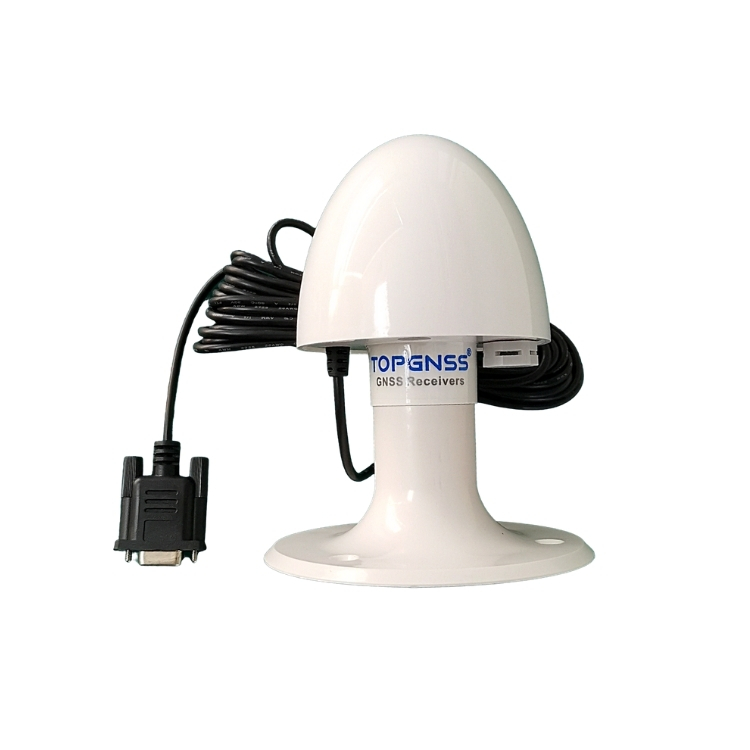

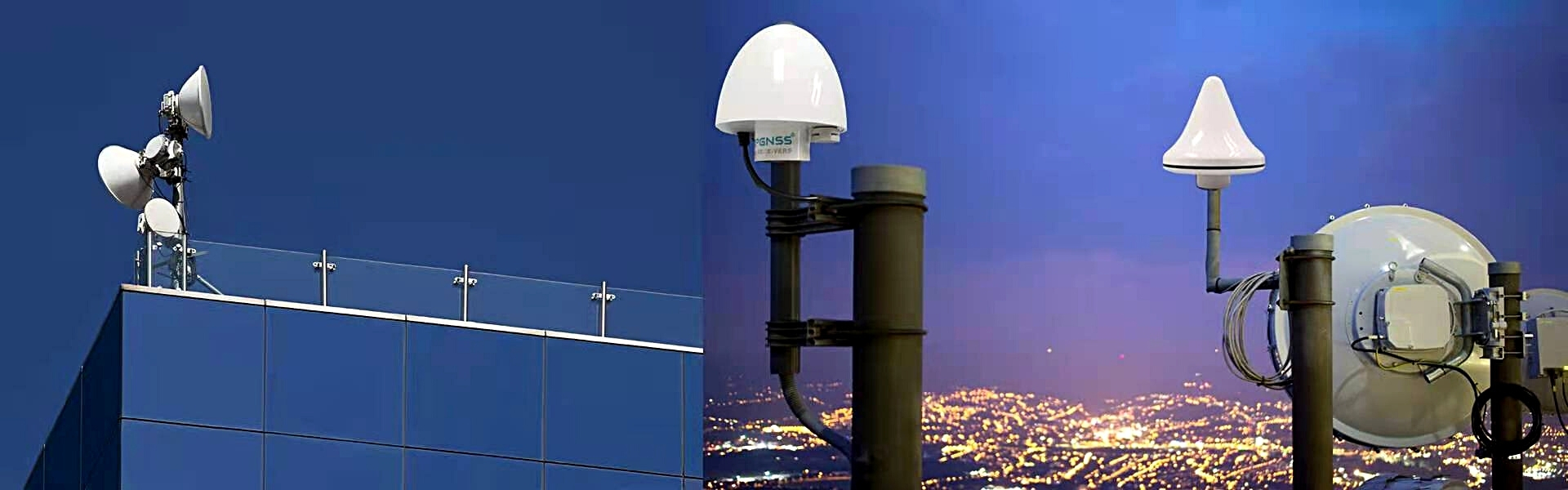

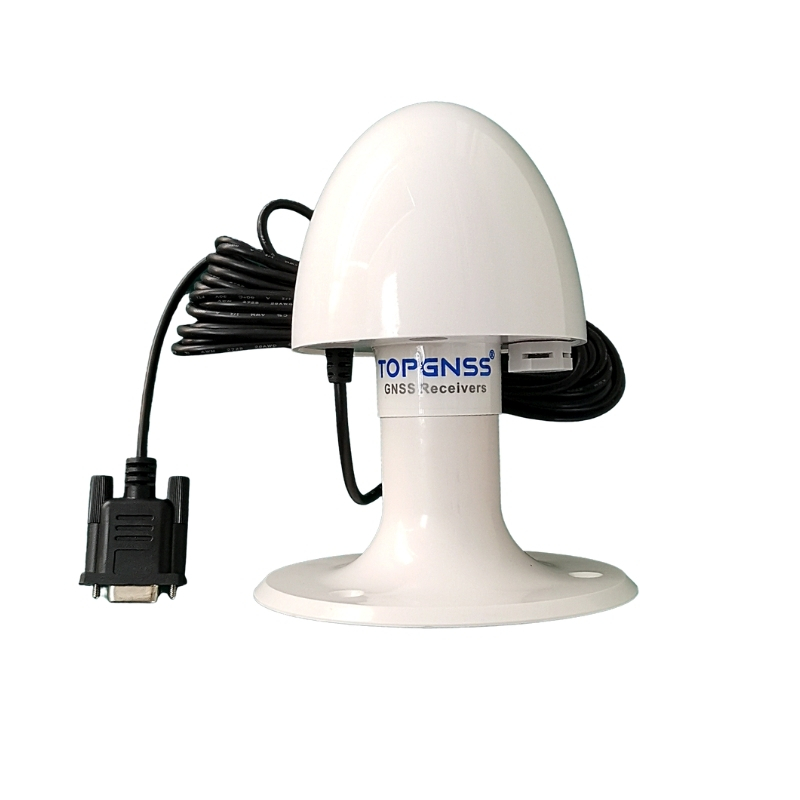

TOP103GPS接收模块,是一个带有RS232串口的有线GNSS GPS接收模块。内部集成GNSS芯片和天线独立设计,结构采用螺纹支架,工业PC材质外壳。非常适合长期户外使用。防水等级符合IPX67。它易于安装和使用,易于集成到室外摄像系统中,用于计时、船舶监控和海上使用。导航、户外监控、基站授时、DVR(数字视频)、行车记录仪、后视镜、闭路电视等,也非常适用于车队管理和控制系统,如出租车调度、公交车无线路由器GPS、卡车报警器、公交车站自动公告系统等。


  • 芯片组:u-blox M8 UBX-M8030 高性能 GPS/GNSS 芯片

  • 位置水平精度:2.5m

  • 超过 200 万个有效相关器

  • 支持 GPS、QZSS、GLONASS、北斗,并为伽利略做好准备

  • 集成 TCXO、LNA、SAW、RTC

  • 搜索模式下的 72 个频道

  • 灵敏度:-167 dBm(跟踪)

  • 接口:RS232输出

  • 连接器:MicroFit 3.0、PS2、DB9 等。

  • GPS 协议:NMEA 0183,2.3 版

  • 支持波特率:4800bps 到 115200bps,默认 9600bps

  • NMEA 消息:RMC、VTG、GGA、GSA、GSV、GLL

  • VCC:直流电压 3.3V~5.5V(典型值:5V)



TOPGNSS  GNSS Receiver /GPS MOUSE                                        TOP103              Size: 87*75mm
Receiving Frequency bandGNSS L1, (GPS+GLONASS+GALILEO)Or (GPS+BEIDOU+GALILEO)Receiving channel72CH
Direction<0.5 DegreesRate<0.1m/s
Timing accuracy50 nsReference coordinate systemWGS-84
Maximum altitude50000MMaximum speed500 m/s
Acceleration<=4gTracking sensitivity-167dBm
Capture the sensitivity-167dBmStandard clock pulse0.25Hz-1KHz
Location update rate1Hz-15Hz(default 1Hz,Only GPS mode supports 20HZ)The start up time32(typical)

Port interface(default)

RS232 port interface(default)

RS232 port interface(default)

Customizable UART/TTL, USB, RS485, RS422

Warm start time28(typical)

Hot start

1(typical)AGPS3s

Output

NMEA 0183 V4.1(GNGGA,GGSA,GNGSV,GNRMC,GNVTG,GNGLL)protocol,UBX

Electrical interface

Wide voltage range: the main power supply 3.3-5V, Owned RTC Power

Data rate

9600bps(default) (optional: 1200,2400,4800,19200,38400,57600,115200,230400,460800,921600)

Cable length

5.0 meters(Support 2m, 3m, 10m, 15m, 20m customization)C/A Code,1023MHz code stream

Connector

DB9 female (support customization)

Positioning performance

<2.0M(Autonomous)(50%) <1.5M(SBAS)

Fixing method

With fixed bracketWater release ratingIP67

Normal working conditions

ParametersMinStandardMax
The power supply voltage(V)7.012.024.0
Working temperature(ºC)-40--85
Working current(mA)3545


55


Connector DB 9 Pin Out:

DB9 female Pin Description:

Interface

PIN

PIN Name

I/0

Description

DB9  Female

2

TX

I

RS-232   Serial Data Output

3

RX

O

RS-232   Serial Data INput

5

GND

I

Ground

9

VCC

G

DC 5.0V supply input,Typical:5.0V

External power supply:=+5.0vDC      Pin=2+GPS Tx    Pin 3=GPS Rx      Pin 5=GND



Output NMEA0183   protocol sample:



XXGGA,XXRMC,XXGSV,XXGSA,XXVTG,XXGLL

Configured GNSS

Talker ID

GPSSBAS,QZSS

GP

GLONASS

GB

BeiDou

GB

Galileo

GA

Any combination   of GNSS

GN

06:26:28  $GNRMC,062628.00,A,2235.51231,N,11353.49967,E,0.005,,090721,,,D,V*05

06:26:28  $GNVTG,,T,,M,0.005,N,0.010,K,D*3C

06:26:28    $GNGGA,062628.00,2235.51231,N,11353.49967,E,2,12,0.73,26.6,M,-2.9,M,1.0,3344*41

06:26:28  $GNGSA,A,3,02,20,12,17,09,19,05,25,13,50,,,1.83,0.73,1.68,1*01

06:26:28    $GNGSA,A,3,69,83,68,,,,,,,,,,1.83,0.73,1.68,2*09

06:26:28    $GNGSA,A,3,09,12,04,36,25,11,24,,,,,,1.83,0.73,1.68,3*08

06:26:28  $GNGSA,A,3,08,11,07,14,13,34,10,,,,,,1.83,0.73,1.68,4*0B

06:26:28    $GPGSV,4,1,14,02,47,347,43,05,37,245,42,06,42,037,41,09,22,053,37,1*6C

06:26:28    $GPGSV,4,2,14,11,48,352,45,12,34,280,40,13,14,183,31,17,27,132,39,1*62

06:26:28  $GPGSV,4,3,14,19,49,121,42,20,58,277,43,25,12,307,36,28,,,35,1*54

06:26:28    $GPGSV,4,4,14,41,46,237,43,50,60,149,41,1*6D

06:26:28    $GPGSV,2,1,07,05,37,245,42,06,42,037,44,09,22,053,40,11,48,352,46,6*66

06:26:28    $GPGSV,2,2,07,12,34,280,40,17,27,132,38,25,12,307,37,6*52

06:26:28  $GPGSV,1,1,01,40,20,257,,0*52

06:26:28    $GLGSV,2,1,07,68,44,033,46,69,76,166,47,73,07,231,33,74,08,276,32,1*76

06:26:28    $GLGSV,2,2,07,82,16,104,33,83,43,060,32,84,29,343,35,1*49

06:26:28    $GLGSV,2,1,06,68,44,033,39,69,76,166,40,73,07,231,31,82,16,104,31,3*7B

06:26:28    $GLGSV,2,2,06,83,43,060,35,84,29,343,38,3*78

06:26:28  $GLGSV,1,1,01,70,17,202,,0*49

06:26:28    $GAGSV,3,1,09,04,54,083,49,09,45,175,47,11,50,008,46,12,28,076,41,2*74

06:26:28    $GAGSV,3,2,09,14,43,320,52,19,09,040,33,24,18,196,41,25,28,252,44,2*73

06:26:28  $GAGSV,3,3,09,36,22,312,41,2*4F

06:26:28    $GAGSV,3,1,09,04,54,083,40,09,45,175,41,11,50,008,41,12,28,076,31,7*7E

06:26:28    $GAGSV,3,2,09,14,43,320,46,19,09,040,26,24,18,196,36,25,28,252,36,7*72

06:26:28  $GAGSV,3,3,09,36,22,312,38,7*44

06:26:28  $GAGSV,1,1,02,02,12,302,,05,03,203,,0*71

06:26:28    $GBGSV,2,1,08,07,41,190,41,08,48,354,44,10,51,221,43,11,47,092,43,1*78

06:26:28    $GBGSV,2,2,08,13,46,322,45,14,71,044,46,16,25,166,39,34,28,112,40,1*7D

06:26:28  $GBGSV,2,1,08,06,28,161,43,07,41,190,44,08,48,354,47,10,51,221,45,3*78

06:26:28    $GBGSV,2,2,08,11,47,092,48,13,46,322,47,14,71,044,48,16,25,166,42,3*70

06:26:28    $GBGSV,3,1,09,01,47,123,,03,65,189,,04,33,110,,05,24,255,,0*7B

06:26:28    $GBGSV,3,2,09,05,24,255,,09,12,183,,12,04,121,,23,06,229,,0*75

06:26:28  $GBGSV,3,3,09,23,06,229,,0*40

06:26:28    $GNGLL,2235.51231,N,11353.49967,E,062628.00,A,D*78

06:26:29    $GNRMC,062629.00,A,2235.51231,N,11353.49967,E,0.008,,090721,,,D,V*09

06:26:29  $GNVTG,,T,,M,0.008,N,0.015,K,D*34

06:26:29    $GNGGA,062629.00,2235.51231,N,11353.49967,E,4,12,0.73,26.6,M,-2.9,M,1.0,3344*40


(1) Possible values for status: V = Data invalid, A = Data valid

(2) Possible values for quality: 0 = No fix, 1 = Autonomous GNSS fix, 2 = Differential GNSS fix, 4 =

RTK fixed, 5 = RTK float, 6 = Estimated/Dead reckoning fix

(3) Possible values for navMode: 1 = No fix, 2 = 2D fix, 3 = 3D fix

(4) Possible values for posMode: N = No fix, E = Estimated/Dead reckoning fix, A = Autonomous

GNSS fix, D = Differential GNSS fix, F = RTK float, R = RTK fixed

Flags in NMEA 4.10 and above

(1) Possible values for status: V = Data invalid, A = Data valid

(2) Possible values for quality: 0 = No fix, 1 = Autonomous GNSS fix, 2 = Differential GNSS fix, 4 =

RTK fixed, 5 = RTK float, 6 = Estimated/Dead reckoning fix

(3) Possible values for posMode: N = No fix, E = Estimated/Dead reckoning fix, A = Autonomous

GNSS fix, D = Differential GNSS fix, F = RTK float, R = RTK fixed



TOPGNSS Support customized GNSS   receiver GNSS chip specifications:


GNSS chips

Brand

   Chip Model

Remarks


U-blox

UBX-M8030-KT

UBX-G7020-KT

UBX-G6010-ST

GNSS L1



MTK

MT3335

MT3333

MT3331

MT3337

Support custom NMEA data encryption


ALLYSTAR

HD8040

HD8020

GNSS:L1+L5


SIRF

SIRF4

SIRF5

GNSS:L1


TOPGNSS GNSS Receiver Accept custom   type:

GNSS mode, special data, structure,   size, logo, cable length, connector specification, installation and fixing   method.


If you have other special   requirements, please feel free to contact us.

      info@topgnss.com

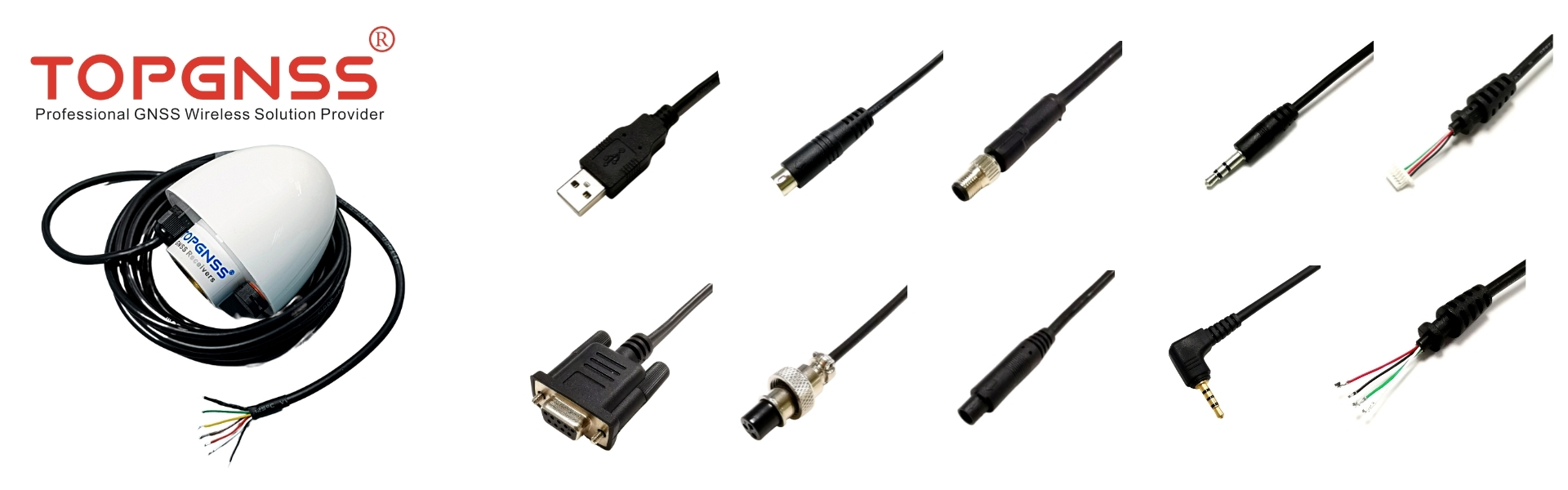

TOP103 GPS receiver connector specifications

Primary CompetitiveAdvantages

         Small Orders Accepted

Support sample purchase and small batch   customization

         Quality Approvals CE,FCC,ROHS)

         Servicerapid mass customization OEM / ODM

         Reputation (TOPGNSS)

Shipping   Information

Lead Time:3-30days

FOB Port:Shen Zhen China

Payment Details

Payment Method: L/C or T/T in Advance

Main Export   MPayment Details

         Asia

         Australasia

         Central/South America

         Eastern Europe

         North America

         Western Europe

         Mid East/Africa

Transportation   logistics

FedEX

UPS

DHL

Tips:Support guests to send goods using   their signed logistics express

FAQ

Q: Can I get a sample of GNSS receiver?

A: Yes, you can also purchase the samples you need through our online store. When purchasing in bulk, we can refund the sample cost.


Q: Is the GNSS receiver 100% assembled in stock?

A: No, all GNSS antennas will be reassembled according to your order (including samples).


Q: What is the delivery time?

A: 3-5 working days for samples, 10-15 working days for quantities below 5K.


Q: Can I use my own LOGO or design on the product?

A: Yes, the logo and mass production design can be customized.


Q: What is the payment term?

Answer: T/T, Paypal, Western union, etc.


Q: Can I visit your company?

A: Of course, you are welcome at any time.


Q: How long is the warranty period?

A: One year for antennas, half a year for assembling cables and connectors
