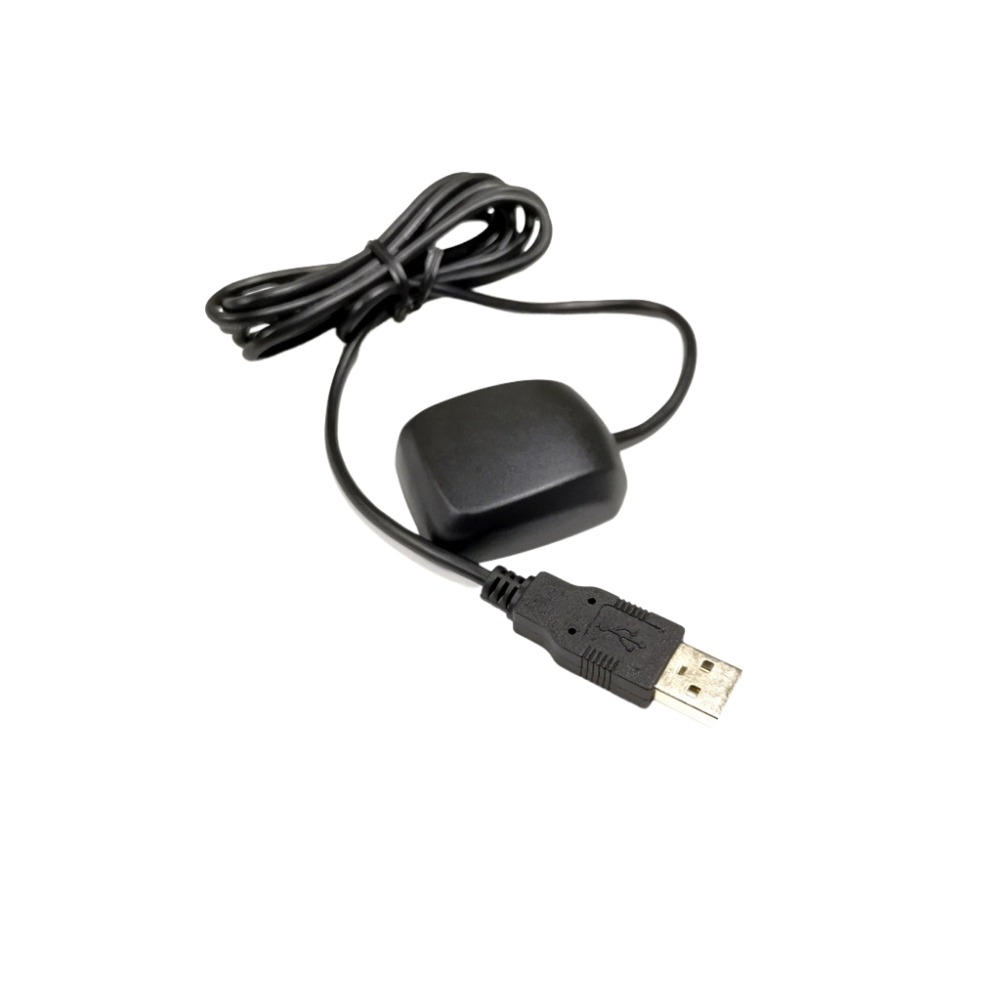

产品型号 （Product model）GNSS systemGNSS working modeGN200GGNSS L1GPS +GLONASS GN200BGNSS L1GPS +BEIDOUGN200LGNSS L1GPS+GALILEO+BEIDOU
产品型号 （Product model） | GNSS system | GNSS working mode |
GN200G | GNSS L1 | GPS +GLONASS |
GN200B | GNSS L1 | GPS +BEIDOU |
GN200L | GNSS L1 | GPS+GALILEO+BEIDOU |
USB GNSS Receiver Driver | |
GNSS test tool | https://www.u-blox.com/sites/default/files/u-center_v21.05.exe.zip |
 | https://www.u-blox.com/sites/default/files/u-center_Userguide_UBX-13005250.pdf |
u-center_Userguide |
|
| |
UBX-NMEA0183 protocol text | |
| NMEA0183 Data example: | NMEA0183 Data example:: 06:44:01 $GNRMC,064401.00,A,2235.51245,N,11353.49948,E,0.016,,270421,,,D,V*1F 06:44:01 $GNVTG,,T,,M,0.016,N,0.030,K,D*3C 06:44:01 $GNGGA,064401.00,2235.51245,N,11353.49948,E,2,12,0.73,32.3,M,-2.9,M,1.0,3340*42 06:44:01 $GNGSA,A,3,14,01,03,17,21,07,28,30,41,,,,1.53,0.73,1.34,1*0D 06:44:01 $GNGSA,A,3,88,81,78,82,79,77,87,,,,,,1.53,0.73,1.34,2*0A 06:44:01 $GNGSA,A,3,31,33,,,,,,,,,,,1.53,0.73,1.34,3*04 06:44:01 $GNGSA,A,3,07,27,01,03,08,10,13,32,,,,,1.53,0.73,1.34,4*0B 06:44:01 $GPGSV,3,1,11,01,44,031,43,03,39,110,41,07,29,186,37,14,57,342,45,1*6A 06:44:01 $GPGSV,3,2,11,17,38,311,43,21,22,038,36,28,46,335,44,30,48,234,43,1*61 06:44:01 $GPGSV,3,3,11,40,20,257,,41,46,237,43,50,46,122,40,1*56 06:44:01 $GLGSV,3,1,10,65,08,094,,66,00,149,,72,00,054,,77,41,161,37,1*72 06:44:01 $GLGSV,3,2,10,78,77,307,46,79,23,331,44,81,43,285,48,82,09,245,42,1*74 06:44:01 $GLGSV,3,3,10,87,12,033,42,88,41,003,48,1*79 06:44:01 $GAGSV,1,1,02,31,46,327,44,33,71,318,43,7*7C |
